MODULAR FLOATING DOCKS
2000 Series Products

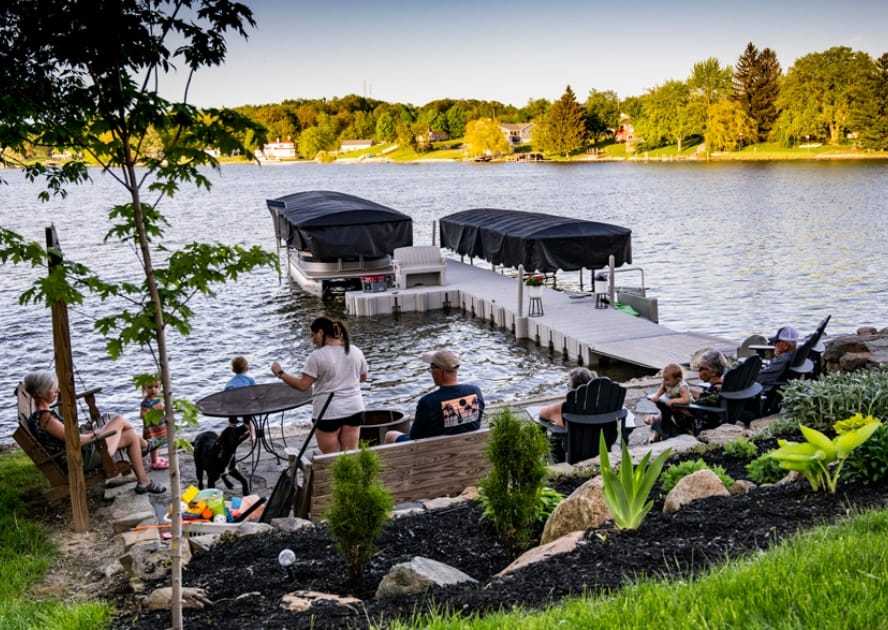

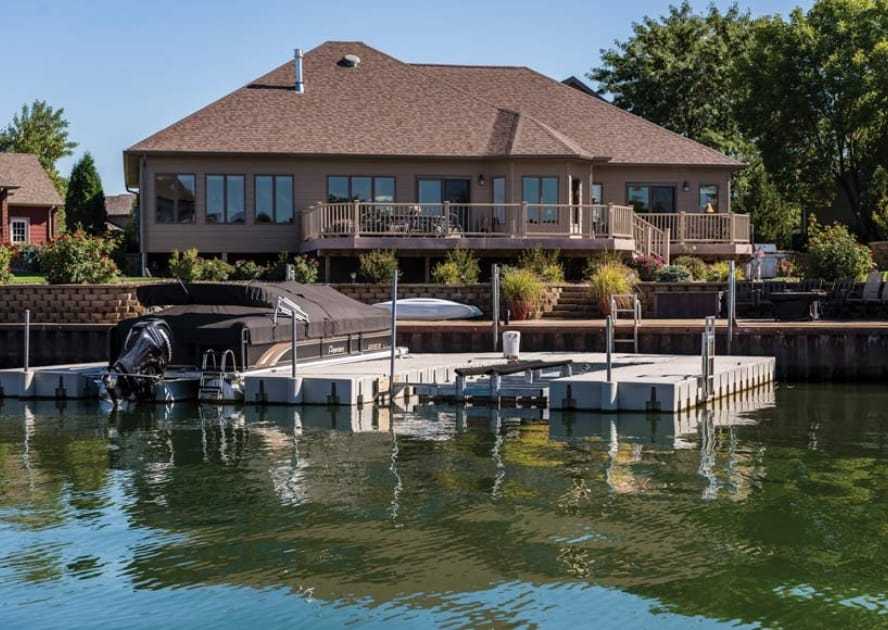

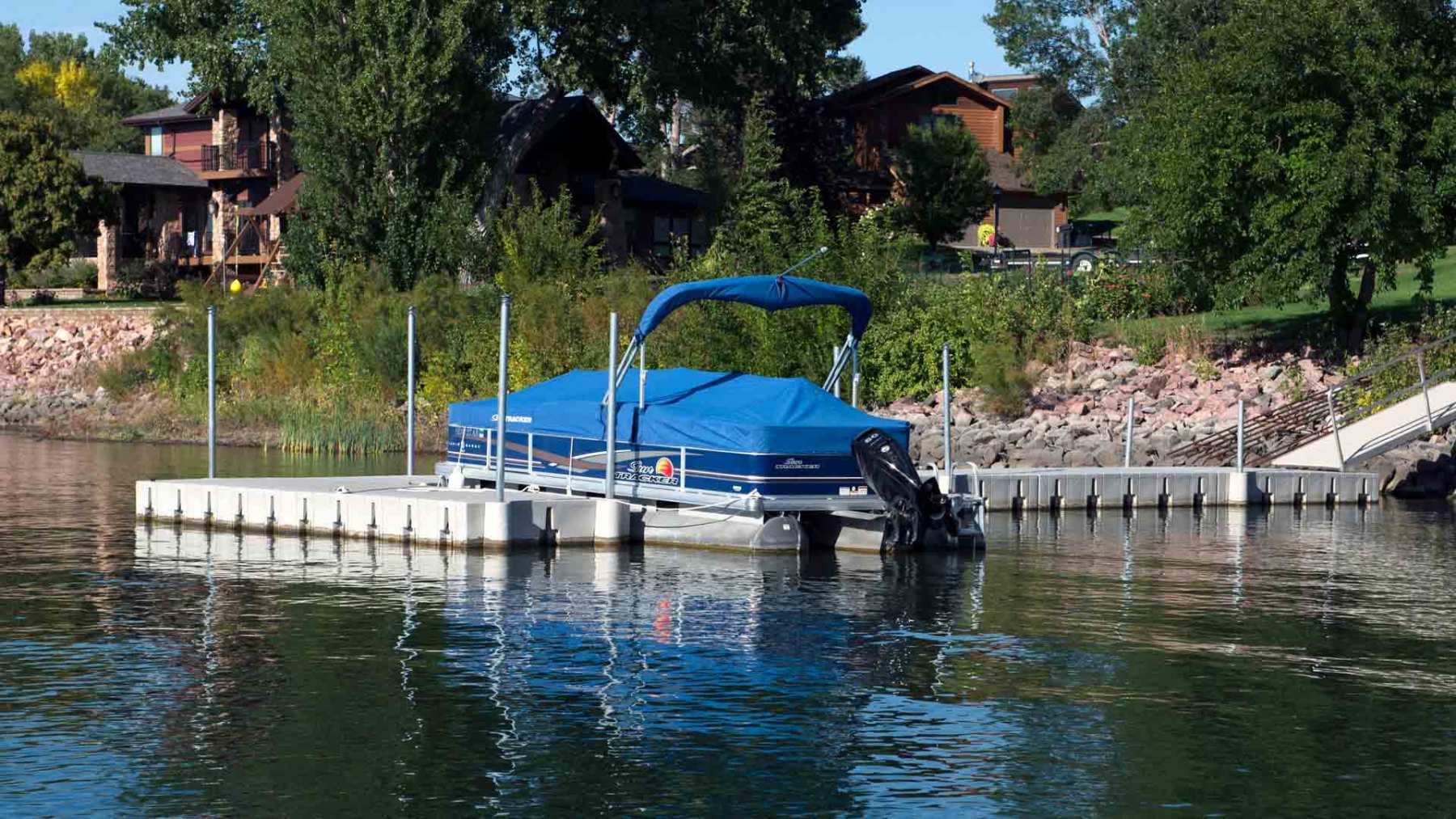

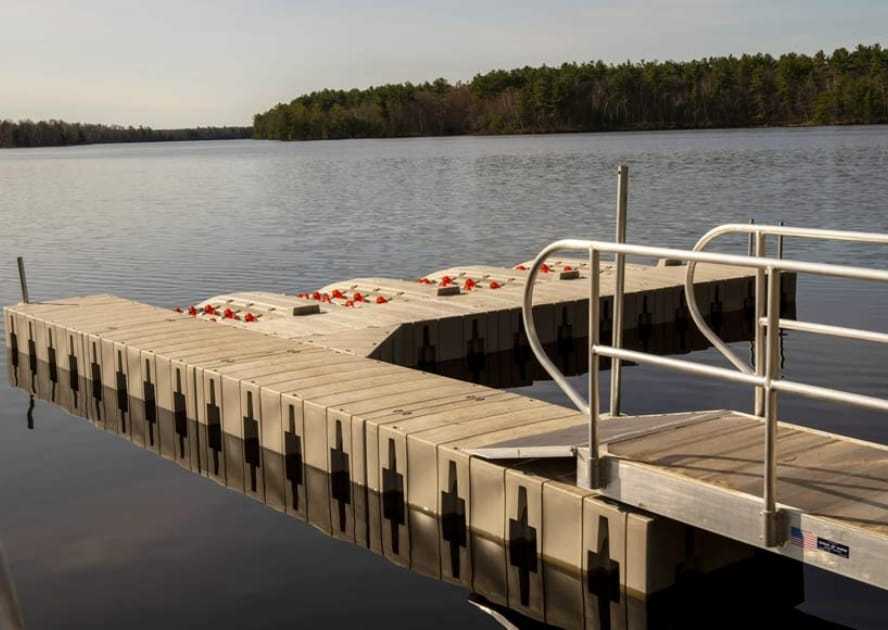

The 2000 Series High Profile Dock is an ideal choice for residential properties, providing homeowners with a flexible and reliable docking solution that’s also popular for commercial settings like marinas and parks. Its expandable design allows for custom widths and lengths, making it easy to adjust for personal watercraft or larger boats.

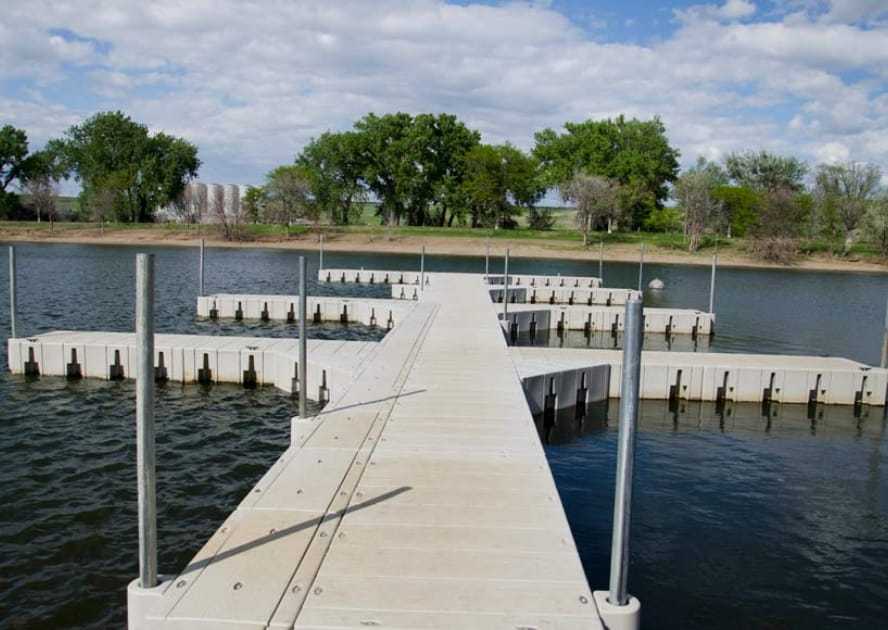

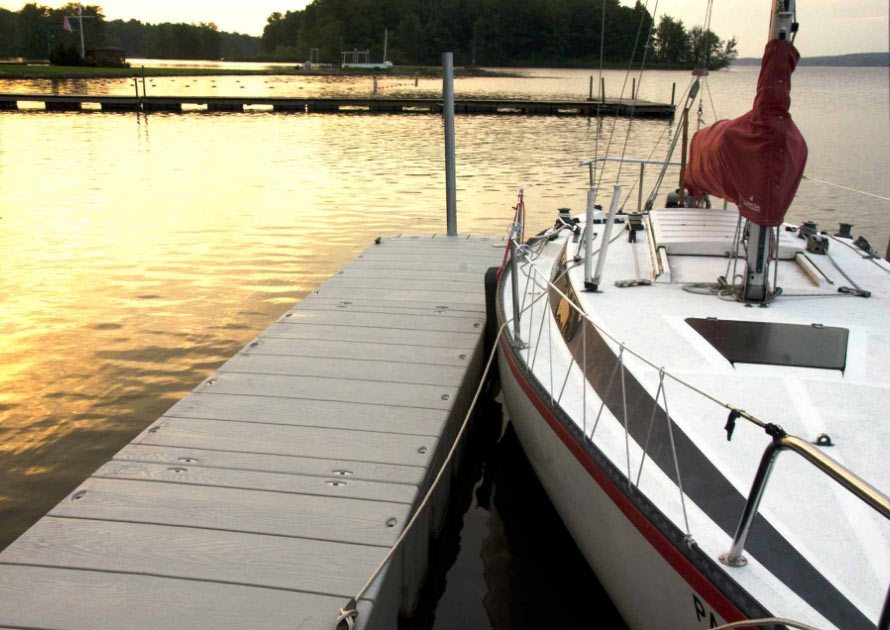

- Floating decks and boat docks for larger boats at home, in resorts, and at marinas
- 17″ (43.18 cm) from top of the dock to top of the water
- Stable, versatile and durable with a skid-resistant surface
2000 Series Dock Packages
Dock packages offer flexibility and freedom for you to choose exactly what you want. Take the guesswork out by choosing a prebuilt package for our most popular configurations.
Model TPK2012
Dock Parts:
- Float Section (FS2096) – (4)
- Float Connectors – (6)
- Hardware Included
Model TPK2014
Dock Parts:
- Float Section (FS2096) – (7)
- Corner Float Section – (2)
- Float Connectors – (20)
- Hardware Included
Model TPK1015
Dock Parts:
- Float Sections FS1120 – (2)
- Float Sections FS1060 – (3)
- Corner Float Sections – (2)
- Float Connectors – (23)
- Hardware Included
Model UPK2015
Dock Parts:
- Float Section (FS2096) – (5)
- Float Connectors – (8)
- Hardware Included
Model UPK2016
Dock Parts:
- Float Section (FS2120) – (1)
- Float Section (FS2096) – (6)
- Float Connectors – (14)
- Hardware Included
Model UPK2017
Dock Parts:
- Float Section (FS2096) – (8)
- Float Section (FS2024) – (1)
- Corner Float Section – (2)
- Float Connectors – (24)
- Hardware Included
Model FPK2013
Dock Parts:
- Float Section (FS2120) – (3)
- Float Section (FS2096) – (4)
- Corner Float Section – (2)
- Float Connectors – (22)
- Hardware Included
Model FPK2014
Dock Parts:
- Float Section (FS2120) – (3)
- Float Section (FS2096) – (7)
- Corner Float Section – (1)
- Float Connectors – (16)
- Hardware Included
Model FPK2015
Dock Parts:
- Float Section (FS2096) – (10)
- Corner Float Section – (2)
- Float Connectors – (36)
- Hardware Included
Model SPK2010
Dock Parts:
- Float Section (FS2096) – (2)
- Float Connectors – (2)
- Hardware Included
Model SPK2011
Dock Parts:
- Float Section (FS2120) – (2)
- Float Connectors – (3)
- Hardware Included
Model SPK2012
Dock Parts:
- Float Section (FS2096) – (3)
- Float Connectors – (4)
- Hardware Included
Model LPK2013
Dock Parts:
- Float Section (FS2096) – (3)
- 2 x 4 Float Section – (1)
- Float Connectors – (6)
- Hardware Included
Model LPK2014
Dock Parts:
- Float Section (FS2096) – (6)
- Corner Float Section – (1)
- Float Connectors – (18)
- Hardware Included
Model LPK2015
Dock Parts:
- Float Section (FS2120) – (2)
- Float Section (FS2096) – (3)
- Corner Float Section – (1)
- Float Connectors – (13)
- Hardware Included
Model DPK2008
Dock Parts:
- Float Section (FS2120) – (2)
- Float Sections – (3)
- Float Connectors – (8)
- Hardware Included
Model DPK2009
Dock Parts:
- Float Sections – (8)
- Float Connectors – (32)
- Hardware Included
Model DPK2010
Dock Parts:
- Float Sections – (3)
- Float Connectors – (10)
- Hardware Included
Shop 2000 Series Dock Components
View 2000 Series dock section components, anchoring, and accessory options below. Contact your local dealer for a quote. Some parts are also available for online purchase.
model FS1120
Float Section 48″ x 96″
The primary component of the Connect-A-Dock system is molded of maintenance-free polyethylene with connector sockets for simple and extendable slip-fit connectors.
48″ x 96″ x 20″
(122 cm x 244 cm x 51 cm)
Weight: 230 lbs. (104.3 Kg)
Max. Flotation: 2500 lbs (1134 kg) per section
model FS2120
Float Section 60″ x 120″
The FS2120 high profile section is molded of maintenance-free polyethylene with connector sockets for simple and slip-fit connectors.
72″ x 120″ x 20″
182.9 cm x 304.8 cm x 51 cm
Weight: 420 lbs. (190.5 Kg)
Max. Flotation: 4800 lbs (2177 kg) per section
model FS2024
Float Section 60″ x 120″
The 2 x 4 Float Section enables you to add more square footage where a small addition is needed.
48″ x 24″ x 20″
121.92 cm x 60.96 cm x 50.8 cm
Weight: 70 lbs. (31.75 Kg)
Max. Flotation: 600 lbs (272 kg) per section
model CFS2022
Corner Float Section
Adds strength, stability and extra walking space to the fingers of your dock.
48″ x 67″ x 20″
121.9 cm x 170.1 cm x 50.8 cm
Weight: 75 lbs. (34 Kg)
Max. Flotation: 550 lbs (249.5 kg) per section
model EF2020
Extra Flotation
This accessory adds 300 pounds (136.1 Kg) of extra buoyancy to your 2000 Series Connect-A-Dock wherever additional flotation is required. Extra Flotation should always be placed where gangways are located.
model FC2020
Float Connector
Float Connectors are used to attach Float Sections. Hidden from view in slip-fit connector sockets. (Hardware included)
model FC2022
2″ Pole Connector
The versatile Pole Connector slip-fits into the exposed connector sockets of Float Sections and can accommodate a variety of anchoring methods, depending on your location and needs.
2″ Model Maximum pole size 2-3/8” O.D.
model FC2023
3″ Pole Connector
The versatile Pole Connector slip-fits into the exposed connector sockets of Float Sections and can accommodate a variety of anchoring methods, depending on your location and needs.
3″ Model, Maximum pole size 3″
model DPC2023
3″ Dual Pole Connector
Two connection points for added strength. Two Float Connectors required to attach to the dock, order separately.
Maximum pole size 3″
model PC1002
Pole Cover
Cover those unsightly anchor pole tops with the easily-installed and durable Pole Cover. One needed per pole.
model DM2002
2″ (5.08 cm) Dead Man Collar
Anchor your dock without poles. Slip the long end of the Dead Man Collar in the Pole Connector on the side of the dock and rig a weighted chain through the bottom of the collar. Fasten the chain by setting a link in the groove in the top of the collar. (Chain and weight not included)
model SAF1020
Stiff Arm Fittings
The Stiff Arm Fitting is attached to the dock and is fitted to a connecting pole. The connecting pole’s other end connects to a shore ground anchor.
model SAB1020
Stiff Arm Bracket
The Stiff Arm Bracket is attached to the dock and is fitted to a connecting pole. The connecting pole’s other end attaches to a shore ground anchor.
model PA1002
2″ (5.08 cm) Pole Auger
Make it easy to install/remove your pole anchors with the Pole Auger (one per pole). Attach the auger to the bottom of the pole with bolt, slip a Pole Connector over the top of the pole and attach to dock. Drill a hole through the top of the pole, insert a dowel (not included) and turn to auger the pole into the lake bed. Remove pole by turning the dowel in the opposite direction. (Hardware included)
PN-950248
2000 Series Metal Accessory Connector
Add accessories to the 2000 Series dock sections or use it to connect it to other docks.
7” x 8.125” x 17.125”
model 4-5486
5″x 5″ Hinge Plate Kit
Attach 2000 Series float sections to other docks at different heights with the male hinge connection
6.5” x 5.5” x 10” (16.5 cm x 14 cm x 25.4 cm)
model 4-5025
Female Hinge
Attach 2000 Series float sections to other docks.
5” x 3” x 12.75” (12.7 cm x 7.6 cm x 32.4 cm)
Piling Loops
Attach your floating dock to a permanent structure with the Piling Loop. Bolt the bracket to the deck of the dock, loop the support around the piling (up to 18″ (45.72 cm) in diameter) and connect back to the bracket. Great for fluctuating water levels. (Hardware included)
Model GWA4X8 – 4′ x 8′
4′ x 8′ x 3′
121.9 cm x 243.8 cm x 91.4 cm
Model GWA4X12 – 4′ x 12′
4′ x 12′ x 3′
121.9 cm x 365.8 cm x 91.4 cm
Model GWA3X16 – 4′ x 16′
4′ x 16′ x 3′
121.9 cm x 487.7 cm x 91.4 cm
Aluminum Gangway with Handrails
Choose between three lengths, and two widths. Simply attach the aluminum hinge with the bolts to your dock. Handrails included (Hardware included)
model GW1024
Gangway 4′ x 4′
Slip resistant panels that allow water to drain off and light to pass thru. Connect to either 1000 Series – Low Profile or 2000 Series – High Profile in minutes.
4” x 4” (126.9 cm x 121.92 cm)
model GW1028
Gangway 4′ x 8′
Slip resistant panels that allow water to drain off and light to pass thru. Connect to either 1000 Series – Low Profile or 2000 Series – High Profile in minutes.
4” x 8” (121.92 cm x 250.95 cm)
model GW1032
Gangway 4′ x 12′
Slip resistant panels that allow water to drain off and light to pass thru. Connect to either 1000 Series – Low Profile or 2000 Series – High Profile in minutes.
4” x 12” (121.92 cm x 365.76 cm)
model GW1036
Gangway 6′ x 8′
Slip resistant panels that allow water to drain off and light to pass thru. Connect to either 1000 Series – Low Profile or 2000 Series – High Profile in minutes.
6” x 8” (182.88 cm x 250.95 cm)
model GH2010
Gangway Hinge
Flip your gangway up and over onto the dock with the Gangway Hinge. (Hardware included)
model RK1020
Roller Kit (set)
Provide a safe and stable transition from stationary to floating docks with the Roller Kit. The easy-rolling wheel ensures that the gangway moves smoothly along the dock’s surface when water levels fluctuate.
model 8C1020
8″ Cleat
7” x 1.35” (17.78 cm x 3.43 cm)
The Cleat bolts to the structure for a strong, reliable attachment. (Hardware included)
model 8C1020
Solar Cleat
Secure your boat & light up the dock edge. (Hardware included)
8″ x 2.125″ (20.32 cm x 5.397 cm)
model DC2000
11″ SS Dual Socket Cleat
Connect the stainless steel cleat at two connector points.
11″ x 2.25″ (27.94 cm x 5.72 cm)
model GR2044
Guardrail 44″
Guardrails are sturdy and easy to assemble. (2 Accessory Connectors and Hardware included)
44″ (111.76 cm)
model GR2067
Guardrail 67″
Guardrails are sturdy and easy to assemble. (2 Accessory Connectors and Hardware included)
67″ (170.18 cm)
model GR2092
Guardrail 92″
Guardrails are sturdy and easy to assemble. (2 Accessory Connectors and Hardware included)
92″ (233.68 cm)
model DBT8011
Kayak Rack
Store two Kayaks on your dock.
6′ x 18.25″
(182.9 cm x 46.36 cm)
model SL1020
Swim Ladder
Provide swimmers easy access in and out of the water with aluminum Swim Ladder. (Hardware included)
21″ x 86″ (53.34 cm x 218.44 cm)
model DB2000
2000 Series-High Profile Bumper
2000 Bumper attaches in the float section sockets.
10.6″x 10.6″x 20″
26.9 cm x 26.9 cm x 51 cm
model DB2000

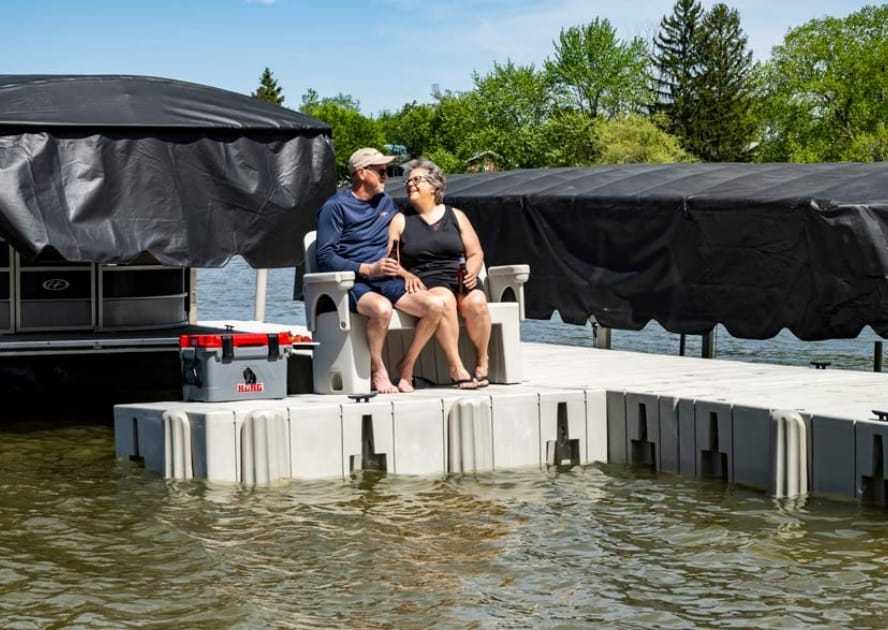

2000 Series Bench
The Connect-A-Dock Bench attachs easily to any 2000 Series (HP) dock system. Designed to seat two people comfortably, this Bench is the perfect addition to your dock to kick back and relax.
model FC2000
Finishing Connector
Give the side walls of your 2000 Series Connect-A-Dock an attractive finished appearance and keep debris out of the connector sockets by filling them with Finishing Connectors. (Hardware included)
model AC2000
Accessory Connector
Add functional and attractive accessories to the outside walls of your dock with the Accessory Connector. (Hardware included)
model SLD1020
Solar Diamond Light
Light up your floating dock’s edge at night. Insert the Solar Diamonds into open float section sockets. Then wait for the sun to go down to enjoy the glow. Two Lights per package.
3.36” x 1.68 x 7.73”
8.54 cm x 4.27 cm x 19.6 cm
model EB1020
Edge Bumper
Provides and edge to keep items from rolling off or used as a wheel chair stop.
2.5” x 3.5” x 8’
(6.35 cm x 8.89 cm x 243.84 cm)
Piling Pole Caps
In Black or White Sizes: 2″ or 3″
Pin/Clip PN-400433
Replacement Pin and Clip
Attach 1000 Series float sections to other docks with Pin-Hitch.
5 x 5 Plates sold separately
model UT2048
Utility Channel – Straight
Add water, electrical, or sewer conduit to your floating dock – straight configuration.
49.56″ x 24″ x 20″
(125.88 cm x 60.96 cm x 50.8 cm)
model UTC2048
Utility Channel – Corner
Add water, electrical, or sewer conduit to your floating dock – corner configuration.
47.91″ x 47.91″ x 20″
(121.7 cm x 121.7 cm x 50.8 cm)
model UTC2024
Utility Channel – Cube
Add water, electrical, or sewer conduit to your floating dock – cube configuration.
23.81″ x 24″ x 20″
(60.47 cm x 60.96 cm x 50.8 cm)
